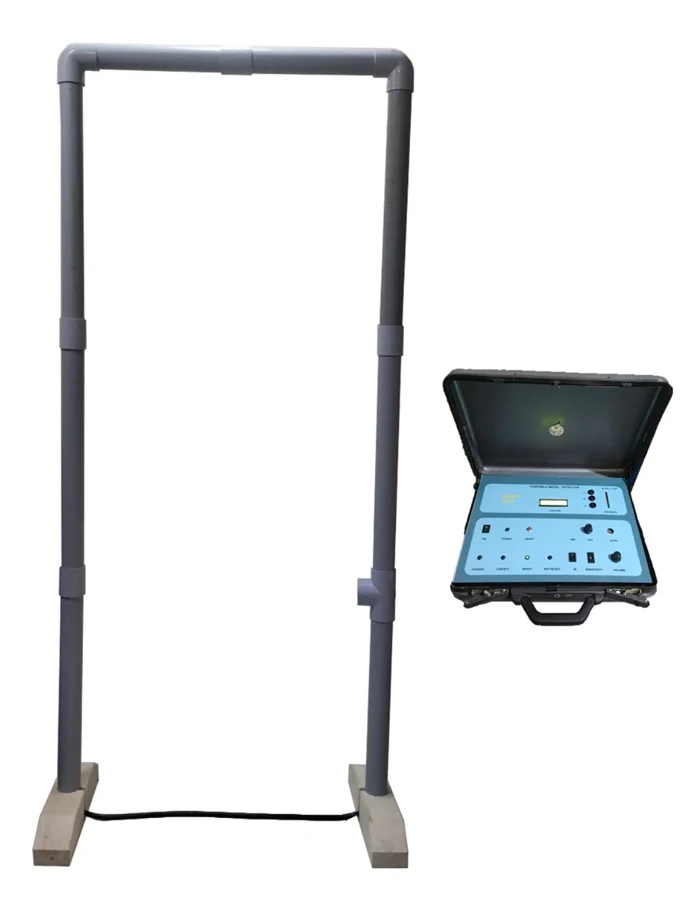

PORTABLE DOOR FRAME METAL DETECTOR
PORTABLE DOOR FRAME METAL DETECTOR
MODEL NO – DHPMD01
FEATURES:
- Detects, ferrous & non-ferrous metals, conductive metal alloys.
- Auto set calibration, no setting required once the metal detector is switched ON.
- Microcontroller based counter
- Sensitivity control 0-9 in steps.
- Search coil housed in PVC frame with wooden stand side supports
- System health indication ready and not ready
- IR sensor to avoid alarm indication for metal movement outside the frame.
- 6 Digits IN counter.
- Counter Display 16 x 2.
- Plug in type PCB for ease of maintenance.
- One Fiber bag / briefcase for the control unit separately.
- Complete set in bag for easy transportation.
- Works on AC, rechargeable battery.
- PVC frame and supply cable are detachable both side.
- Wooden platform (optional at extra cost).
TECHNICAL SPECIFICATIONS:
- Power: 230 VAC +/- 10% 50 Hz
- Visual indication: Bar graph & LED. Audio indication: Speaker.
- Sensitivity: Detects Object As small as 35mm Sq. ferrous and non-ferrous Metal cube for top to bottom.
DIMENSION & SPACE:
- All dimension: All Dimension – 76 x 34 x 18 inches
- Operating temperature: 0 to 50 degrees
